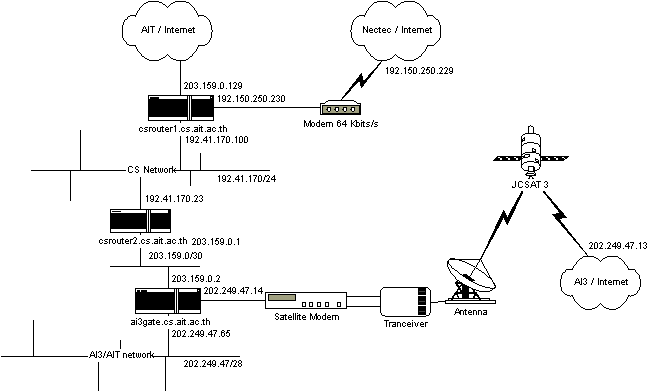

CSIM connection to the world wide Internet

Description of the various equipment used to connect to Internet. "/csinfo/faculty.shtml">Faculty, Student, Staff
Projects and reports
Conferences, workshop and seminars
Laboratories and reasearch facilities
Information related to CSIM
Information non-related to CSIM
Address, map, phone, etc.
rds="350,290,376,317" href="network.shtml#cable">

Internal CSIM network

Topology:
ethernet thinwire and twisted pair
Address:
192.41.170/24
Autonomous system:
4767
Switch:
Cisco, Catalyst 3000
Segments:
5, thinwire
Servers:
8, heterogenous
Routers:
2, heterogenous

A more detailed information about the network cabling is available.

Main CSIM Router

This router carries most of the traffic between CSIM network and Internet worldwide.
Brand:
Cisco
Model:
2514
Name:
csrouter1.cs.ait.ac.th
Description:
2 ethernet 10Mb ports, 2 serial ports
Port eth1:
address 192.41.170.100, connect to internal CSIM network
Port eth2:
address 203.159.0.129, connect to Internet worldwide through AIT network
Port ser1:
address 192.150.250.230, connect to Nectec and Thailand, is a back up for Japan and worldwide Internet

AIT network

Through AIT network, access can be provided to the worldwide Internet.

Statistics to AIT network and wide Intervnet through Worldnet.

Nectec and Thailand

This connection to Nectec offers a direct access to most of the others networks in Thailand.

Physical support:
tiwsted pair, microwave
Speed:
64 Kbits/second
DSU/CSU:
Nokia, BB512
Peering address:
192.150.250.229

Statistics.

Firewall

The goal of this router is to isolate AIT community from AI³ community, provideing filtering and control facilities.

Hardware:
ALR, pentium 100 MHz, 500MB disk, 2 ethernet adapters
Adapter eth1:
brand Longshine, running Western Digital WD8013 compatible mode, address 192.41.170.23
Adapter eth2:
brand Longshine, running Western Digital WD8013 compatible mode, address 203.159.32.1

Perimeter Network

The aim of this network is to isolate CSIM internal network from AI³ network.

Topology:
ethernet twisted pair
Address:
203.159.32.0/30
Autonomous system:
4767

AI³ router

This router connects to Japan through AI³ satellite network. It acts as a backup for the main connection to Internet.

Hardware:
ALR, pentium 100 MHz, 1.2GB disk, 2 ethernet adapters, 1 serial adapter
Software:
BSDi, version 2.1, WISH drivers
Name:
ai3gate.cs.ait.ac.th
Adapter ser1:
brand Riscom/N2, address 202.249.47.14
Adapter eth1:
brand SMC Western Digital 8013, address 202.249.47.65
Adapter eth2:
brand Longshine, running Western Digital WD8013 compatible mode, address 203.159.32.2

AI³-AIT network

This network is designed to run some specific experiments on AI³ testbed, when such experiment need to be isolated from main CSIM traffic.

Topology:
ethernet thinwire
Address:
202.249.47.64/28
Autonomous System:
4717

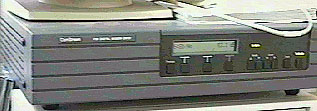

Satellite modem

The modem connects the serial port of the AI³ router to the tranceiver.

Brand:
Comstream
Model:
CM701
Hardware configuration:
Tranfer rate:
1.536 Mbit/second
Tx Frequency:
78.750 MHz
Tx symbol rate:
1024
Tx FEC coding:
Seq 3/4
Tx modul;ation type:
QPSK
Tx differential encoding:
ON
Tx filter mask:
Comstream
Tx power:
-20dB
Tx timing:
?
Tx scrambling:
Comstream

Rx Frequency:
82.250 MHz
Rx data rate:
1536000 bps
Rx symbol rate:
1024
Rx modulation type:
QPSK

Cables

The satellite modem is connected to the tranceiver through a pair of coaxial, 75 Ohm cables. Power supply is not fitted through these cables.

Tranceiver

The tranceiver receive the radio signal from the satellite and send it to the modem. It also receive the data signal from the modem and send it to the satellite.

Brand:
LC3
Model:
serie 8200, 8 watts
Configuration:
Force Redundancy: UNKNOWN
Toggle auxiliary output 1: aux output 1 OFF
Toggle auxiliary output 2: aux output 2 OFF

Tx Frequency: 14056 MHz
Tx power backoff: 9dB
Low RF power alarm: NO

Rx frequency: 12306 MHz
Rx Gain control: +0dB
Startup delay: 0 second
Rx control (EFC): 128 amu
Override PA rated power: NO - (rated power: 39 dBm)
Internal poll address: 1

Antenna dish

Brand:
Prodelin
Model:
3.8 meters diameter, Ku-band
Location:
100°37' east, 14°05' north
Elevation:
54.6°
Azimuth:
114.6°

Link from AIT to JCSAT3

Up link:
frequency 14.06475 GHz
Down link:
frequency 12.31825 GHz, bandwidth 1.5 MHz, modulation QPSK, FEC SEQ R=3/4

Traffic statistics, link performace.

JCSAT-3 satellite

This satellite from Japan Satellite Systems, Inc., has started his operation in late 1995.

Manufacturer:
Hughes Aircraft
Model:
HS-601, high powered, 3 axis stalibized
Ku-Band:
28 transponders, sixteen in 27 MHz and twelve in 36 MHz
C-band:
12 transponders (36 MHz)
Nominal Orbital Longitude:
128° east

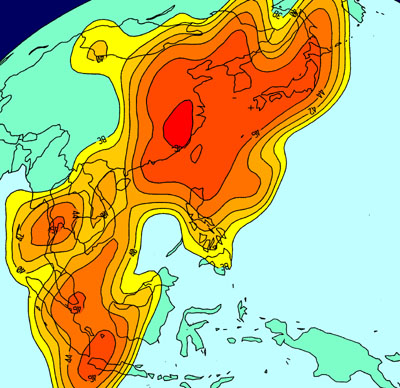

Coverage (Asia Zone beam, horizontal EIRP):

Link from JCSAT3 to NAIST

Up link:
frequency
Down link:
frequency

Peer ground station

AIT statellite ground station is peering with the AI³ hub, installed at Nara Institute of Science and Technology.

Antenna dish:
Tranceiver:
Modem:
Router:
Address:
202.249.47.13

AI³ network

AI³ network offers satellite links to the project partners, and through Wide network, it links to Japan and to worldwide Internet as a backup.
