Detailed configuration

This page details the configuration of every piece of equipment. It concerns only the physical layer.

Antenna

Brand:

Prodelin

Model:

3.8 meters diameter, C-band

Location:

100°37' east, 14°05' north

Elevation:

54.6°

Azimuth:

114.6°

Pointing:

Fine pointing is done by maximizing the level received for the beacon frequency at 3930 MHz.

Tranceiver

Brand:

AnaCom

Model:

60 Watts

Configuration:

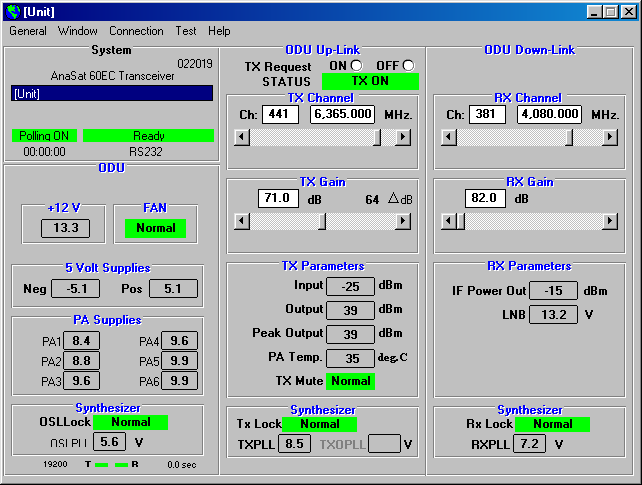

This is a screen copy of the tranceiver configuration software.

Uplink:

6365 MHz (channel 441)

Transmit gain:

71 dB

Downlink:

4080 MHz (channel 381)

Receive gain:

82 dB (minimum)

Beacon:

3930 MHz (channel 231)

Satellite modem AIT-SFC link

Brand:

Comtech ef data

Model:

SDM-300A

Configuration:

>3/MCS_ Modulator Configuration Status RF_ON MF_63.750000 MR_8P23_1536.0 AMRA_1/2_64.0 AMRB_1/2_128.0 AMRC_1/2_256.0 AMRD_1/2_512.0 AMRV_8P23_1536.0 MPO_+0.0 MOP_-20.0 SE_ON DENC_ON MT_INTL MET_VIT COM_OFF MRC_INT MSR_NRM RSEN_ON TDA_NRM TRSI_8 T310_OFF ] >3/MCP_ Modulator/Coder Configuration Program Status SMT_CUSTOM RMR_ ITOT_NONE MOM_DUPLEX MT_INTL MET_VIT MF_63.750000 MR_8P23_1536.0 MPO_+0.0 MOP_-20.0 SE_ON DENC_ON ILT_OFF ERF_1544.0 TC_EXT TCP_AUTO BBL_OFF ILB_OFF ICFT_AMI ISP_OFF TDF_NONE ISCL_TX1_-5 ISCL_TX2_-5 TDP_NRM MRC_INT MSR_NRM RSEN_ON TXDR_RS422 CTSD_0 RTSM_OFF TDA_NRM COM_OFF TRSI_8 T310_OFF RF_ON ] >3/DCS_ Demodulator Configuration Status DF_64.500000 DR_8P23_512.0 ADRA_1/2_64.0 ADRB_1/2_128.0 ADRC_1/2_256.0 ADRD_1/2_512.0 ADRV_8P23_512.0 DE_ON DDEC_ON RFL_OFF IFL_OFF SCF_+0 SWR_60000 SR_0 BERT_NONE DT_INTL DDT_VIT DSR_NRM RSDE_ON RDA_NRM RRSI_8 R310_OFF ] >3/DCP_ Demodulator/Decoder Configuration Program Status SMT_CUSTOM RDR_ IROT_NONE MOM_DUPLEX BERT_NONE DT_INTL DDT_VIT DF_64.500000 DR_8P23_512.0 DE_ON DDEC_ON RFL_OFF IFL_OFF SCF_+0 SWR_60000 SR_0 ILT_OFF ERF_1544.0 BC_SAT RCP_NRM BBL_OFF ILB_OFF ICFR_AMI IRFS_T1_G704 IRFS_E1_G704 IBP_BITS IRE_OFF RDF_NONE ISCL_RX1_-5 ISCL_RX2_-5 RDP_NRM IBS_384 DSR_NRM RSDE_ON RXDR_RS422 RDA_NRM RRSI_8 R310_OFF ] >3/ICS_ Interface Configuration Status TC_EXT ERF_1544.0 TCP_AUTO RCP_NRM BBL_OFF ILB_OFF ILT_OFF ICFT_AMI ICFR_AMI BC_SAT IRFS_T1_G704 IRFS_E1_G704 IBP_BITS IBS_384 ITOT_NONE IROT_NONE ISP_OFF IRE_OFF TDF_NONE RDF_NONE ISCL_TX1_-5 ISCL_TX2_-5 ISCL_RX1_-5 ISCL_RX2_-5 TDP_NRM RDP_NRM TXDR_RS422 RXDR_RS422 RTSM_OFF CTSD_0 ]

Dump of the modem configuration AIT-SFC link

Satellite modem AIT-TU link

Brand:

Comtech ef data

Model:

SDM-300A

Configuration:

>3/MCS_ Modulator Configuration Status RF_ON MF_69.150000 MR_1/2_128.0 AMRA_1/2_64.0 AMRB_1/2_128.0 AMRC_1/2_256.0 AMRD_1/2_512.0 AMRV_1/2_128.0 MPO_+0.0 MOP_-30.0 SE_ON DENC_ON MT_INTL MET_VIT COM_OFF MRC_INT MSR_NRM RSEN_ON TDA_NRM TRSI_8 T310_OFF ] >3/MCP_ Modulator/Coder Configuration Program Status SMT_CUSTOM RMR_ ITOT_NONE MOM_DUPLEX MT_INTL MET_VIT MF_69.150000 MR_1/2_128.0 MPO_+0.0 MOP_-30.0 SE_ON DENC_ON ILT_OFF ERF_1544.0 TC_EXT TCP_AUTO BBL_OFF ILB_OFF ICFT_AMI ISP_OFF TDF_NONE ISCL_TX1_-5 ISCL_TX2_-5 TDP_NRM MRC_INT MSR_NRM RSEN_ON TXDR_RS422 CTSD_0 RTSM_OFF TDA_NRM COM_OFF TRSI_8 T310_OFF RF_ON ] >3/DCS_ Demodulator Configuration Status DF_69.850000 DR_1/2_128.0 ADRA_1/2_64.0 ADRB_1/2_128.0 ADRC_1/2_256.0 ADRD_1/2_512.0 ADRV_1/2_128.0 DE_ON DDEC_ON RFL_OFF IFL_OFF SCF_+0 SWR_60000 SR_0 BERT_NONE DT_INTL DDT_VIT DSR_NRM RSDE_ON RDA_NRM RRSI_8 R310_OFF ] >3/DCP_ Demodulator/Decoder Configuration Program Status SMT_CUSTOM RDR_ IROT_NONE MOM_DUPLEX BERT_NONE DT_INTL DDT_VIT DF_69.850000 DR_1/2_128.0 DE_ON DDEC_ON RFL_OFF IFL_OFF SCF_+0 SWR_60000 SR_0 ILT_OFF ERF_1544.0 BC_SAT RCP_NRM BBL_OFF ILB_OFF ICFR_AMI IRFS_T1_G704 IRFS_E1_G704 IBP_BITS IRE_OFF RDF_NONE ISCL_RX1_-5 ISCL_RX2_-5 RDP_NRM IBS_384 DSR_NRM RSDE_ON RXDR_RS422 RDA_NRM RRSI_8 R310_OFF ] >3/ICS_ Interface Configuration Status TC_EXT ERF_1544.0 TCP_AUTO RCP_NRM BBL_OFF ILB_OFF ILT_OFF ICFT_AMI ICFR_AMI BC_SAT IRFS_T1_G704 IRFS_E1_G704 IBP_BITS IBS_384 ITOT_NONE IROT_NONE ISP_OFF IRE_OFF TDF_NONE RDF_NONE ISCL_TX1_-5 ISCL_TX2_-5 ISCL_RX1_-5 ISCL_RX2_-5 TDP_NRM RDP_NRM TXDR_RS422 RXDR_RS422 RTSM_OFF CTSD_0 ]

Dump of the modem configuration AIT-TU link

Serial/Ethernet Bridge

Brand:

Cisco

Model:

2600 serie

Configuration:

Current configuration : 1198 bytes ! version 12.2 no service single-slot-reload-enable service timestamps debug uptime service timestamps log uptime service password-encryption ! hostname hal ! logging rate-limit console 10 except errors enable password 7 12380C0313025F3002 ! memory-size iomem 15 ip subnet-zero no ip routing ! ! no ip finger ip name-server 192.41.170.15 ! no ip bootp server no ip dhcp-client network-discovery bridge crb ! ! ! interface Loopback0 no ip address no ip route-cache no ip mroute-cache ! interface Ethernet0/0 no ip address no ip route-cache no ip mroute-cache half-duplex bridge-group 1 ! interface Serial0/0 no ip address no ip route-cache no ip mroute-cache no fair-queue bridge-group 1 ! interface Ethernet0/1 no ip address no ip route-cache no ip mroute-cache half-duplex bridge-group 2 ! interface Serial0/1 no ip address no ip route-cache no ip mroute-cache no fair-queue bridge-group 2 ! ip classless no ip http server ! access-list 1 permit 203.159.32.0 0.0.0.255 access-list 2 permit 203.159.32.0 0.0.0.255 bridge 1 protocol ieee bridge 2 protocol ieee ! line con 0 transport input none line aux 0 transport input all line vty 0 4 login line vty 5 15 login ! end

Dump of the bridge configuration As the bridge is not configured for IP, the only way to change the configuration is via serial connection.
