AI3 logo     Country update, June 2005 - Set-up of the C Band link to Nepal
AI3 teammAI3 eventsAI3 researchAI3 publicationsAI3 reports

This page describes the set-up at the physical layer only. No IP configuration is show there.

I want to take opportunity of that page to save the various set-up of the equipments.

CSIM Logo WelcomeCourses
Faculty, Student, Staff
Projects and reports
Conferences, workshop and seminars
Laboratories and reasearch facilities
Information related to CSIM
Information non-related to CSIM
Address, map, phone, etc.
Search

The link to TU Nepal has been started. One modem has been added to manage the frequency used for bidirectional communication to Nepal.

We used the same Cisco is used to bridge both BDL connections because the router had two network and two WAN interfaces. In the same way, we use the same PC router for both BDL connections, we just added a network interface card in the box.

The ground station for the bi-directional link is composed of following equipment:
  • 3.8 meters Prodelin C-band antenna [initial configuration]
  • AnaCom 60 Watts satellite tranceiver, also called ODU (OutDoor Unit) or HPA (High power Amplifier) [initial configuration]
  • SDM-300A, Comtech ef data satellite modem, also known as IDU (InDoor Unit) [configuration] for AIT-SFC (Japan) link. This configuration reflects the change of frequency between ITB and AIT in November 2005.
  • SDM-300A, Comtech ef data satellite modem, also known as IDU (InDoor Unit) [configuration] for AIT-TU (Nepal) link
  • Cisco 2600 to bridge between serial RS422/449 and Ethernet [configuration]
  • Uplink converter from 70 MHz IF to L band by Qintech (no configuration)
  • PC-receiver running trustix for UDLR
  • UD Box receiver for UDLR, by UDcast
  • 2 Pentium, under FreeBSD, running as an Internet router
  • 2 dividers/combiners to split/merge the IF signal (no configuration)
  • a splitter for L band signal


See a bigger image on installation report

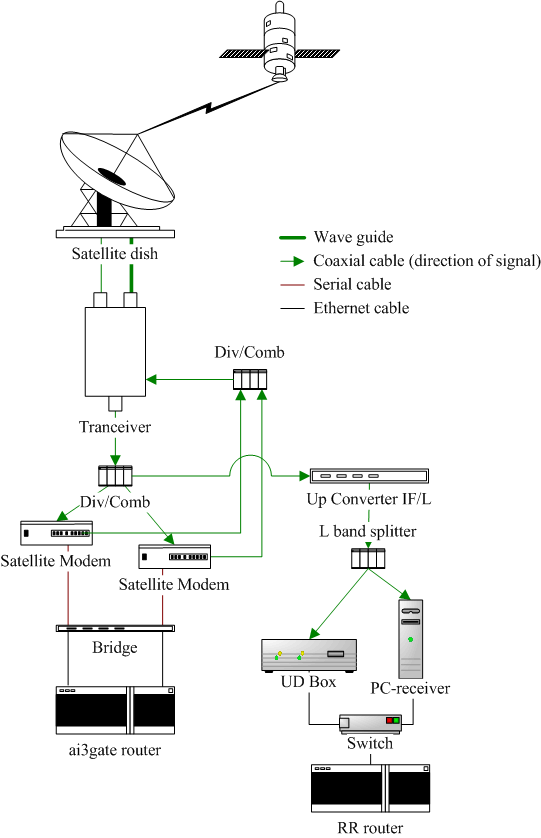

Connection diagram
