Detailed configuration

Detailed configuration

This page details the configuration of every piece of equipment.

It concerns only the physical layer.

Antenna

Brand:: Prodelin
Model:: 3.8 meters diameter, C-band
Location:: 100°37' east, 14°05' north
Elevation:: 54.6°
Azimuth:: 114.6°
Pointing:: Fine pointing is done by maximizing the level received for the beacon frequency at 3930 MHz.

Tranceiver

Brand:

AnaCom

Model:

60 Watts

Configuration:

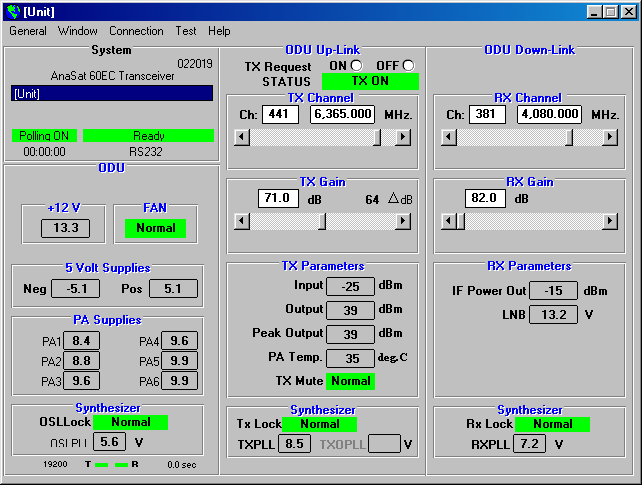

This is a screen copy of the tranceiver configuration software.

Uplink:: 6365 MHz (channel 441)
Transmit gain:: 71 dB
Downlink:: 4080 MHz (channel 381)
Receive gain:: 82 dB (minimum)
Beacon:: 3930 MHz (channel 231)

Satellite modem

Brand:

Comtech ef data

Model:

SDM-300A

Configuration:

>3/MCS_ Modulator Configuration Status RF_ON MF_70.625000 MR_8P23_1536.0 AMRA_1/2_64.0 AMRB_1/2_128.0 AMRC_1/2_256.0 AMRD_1/2_512.0 AMRV_8P23_1536.0 MPO_+0.0 MOP_-25.0 SE_ON DENC_ON MT_INTL MET_VIT COM_OFF MRC_INT MSR_NRM RSEN_ON TDA_NRM TRSI_8 T310_OFF ] >3/MCP_ Modulator/Coder Configuration Program Status SMT_CUSTOM RMR_ ITOT_NONE MOM_DUPLEX MT_INTL MET_VIT MF_70.625000 MR_8P23_1536.0 MPO_+0.0 MOP_-25.0 SE_ON DENC_ON ILT_OFF ERF_1544.0 TC_EXT TCP_AUTO BBL_OFF ILB_OFF ICFT_AMI ISP_OFF TDF_NONE ISCL_TX1_-5 ISCL_TX2_-5 TDP_NRM MRC_INT MSR_NRM RSEN_ON TXDR_RS422 CTSD_0 RTSM_OFF TDA_NRM COM_OFF TRSI_8 T310_OFF RF_ON ] >3/DCS_ Demodulator Configuration Status DF_71.500000 DR_8P23_512.0 ADRA_1/2_64.0 ADRB_1/2_128.0 ADRC_1/2_256.0 ADRD_1/2_512.0 ADRV_8P23_512.0 DE_ON DDEC_ON RFL_OFF IFL_OFF SCF_+0 SWR_60000 SR_0 BERT_NONE DT_INTL DDT_VIT DSR_NRM RSDE_ON RDA_NRM RRSI_8 R310_OFF ] >3/DCP_ Demodulator/Decoder Configuration Program Status SMT_CUSTOM RDR_ IROT_NONE MOM_DUPLEX BERT_NONE DT_INTL DDT_VIT DF_71.500000 DR_8P23_512.0 DE_ON DDEC_ON RFL_OFF IFL_OFF SCF_+0 SWR_60000 SR_0 ILT_OFF ERF_1544.0 BC_SAT RCP_NRM BBL_OFF ILB_OFF ICFR_AMI IRFS_T1_G704 IRFS_E1_G704 IBP_BITS IRE_OFF RDF_NONE ISCL_RX1_-5 ISCL_RX2_-5 RDP_NRM IBS_384 DSR_NRM RSDE_ON RXDR_RS422 RDA_NRM RRSI_8 R310_OFF ] >3/ICS_ Interface Configuration Status TC_EXT ERF_1544.0 TCP_AUTO RCP_NRM BBL_OFF ILB_OFF ILT_OFF ICFT_AMI ICFR_AMI BC_SAT IRFS_T1_G704 IRFS_E1_G704 IBP_BITS IBS_384 ITOT_NONE IROT_NONE ISP_OFF IRE_OFF TDF_NONE RDF_NONE ISCL_TX1_-5 ISCL_TX2_-5 ISCL_RX1_-5 ISCL_RX2_-5 TDP_NRM RDP_NRM TXDR_RS422 RXDR_RS422 RTSM_OFF CTSD_0 ]

Dump of the modem configuration

Serial/Ethernet Bridge

Brand:

Cisco

Model:

2600 serie

Configuration:

Current configuration : 1220 bytes ! version 12.2 no service single-slot-reload-enable service timestamps debug uptime service timestamps log uptime service password-encryption ! hostname hal ! logging rate-limit console 10 except errors enable password 7 12380C0313025F3002 ! memory-size iomem 15 ip subnet-zero no ip routing ! ! no ip finger ip name-server 192.41.170.15 ! no ip bootp server no ip dhcp-client network-discovery bridge crb ! ! ! interface Loopback0 no ip address no ip route-cache no ip mroute-cache ! interface Ethernet0/0 no ip address no ip route-cache no ip mroute-cache half-duplex bridge-group 1 ! interface Serial0/0 no ip address no ip route-cache no ip mroute-cache no fair-queue bridge-group 1 ! interface Ethernet0/1 no ip address no ip route-cache no ip mroute-cache half-duplex bridge-group 2 ! interface Serial0/1 no ip address no ip route-cache no ip mroute-cache no fair-queue bridge-group 2 ! ip classless no ip http server ! access-list 1 permit 203.159.32.0 0.0.0.255 access-list 2 permit 203.159.32.0 0.0.0.255 bridge 1 protocol ieee bridge 2 protocol ieee ! line con 0 transport input none line aux 0 transport input all line vty 0 4 login line vty 5 15 login ! no scheduler allocate end

Dump of the bridge configuration As the bridge is not configured for IP, the only way to change the configuration is via serial connection.

Sony satellite receiver (Sony box)

Brand:

Sony

Model:

SNR-PS 1000

Configuration:

Current configuration: ! hostname cudlr ! password-encryption password encrypt ?????????????????? enable password encrypt ?????????????????? ! tuner downlink 4066.875 tuner symbolrate 7.0140 tuner fec 3/4 tuner polarization off tuner local 5150.000 tuner tone off tuner interval 30 tuner spectral-inversion ! service espid 0x0555 ! interface lan ip address 203.159.32.22 255.255.255.252 media-type auto duplex half exit ! download pid 0x1ffe ip route default 203.159.32.21 ip udlr feed 202.249.25.236 ip udlr gateway 203.159.32.21 ip udlr ip dtcp port 652 ip dtcp address 224.0.1.124 ip dtcp ! ip igmp robustness 2 no ip igmp ip igmp query mac filter pass allmulticast mac learn maxcount 10 mac learn timeout 0 mac learn address 00:c0:26:a0:6b:82 mac learn address 00:60:97:29:7d:47 mac learn address 00:bd:24:0c:01:01 mac learn address 00:bd:ee:06:00:01 mac learn address 00:10:5a:1a:ba:b1 mac learn address 00:bd:94:02:00:01 mac learn address 00:02:b3:d7:3a:6c snmp-server community aitsnmpquery snmp-server address 0.0.0.0 end !

Dump of the Sony receiver configuration
